Introduction
Closed-Circuit Television (CCTV) systems play a vital role in ensuring security and surveillance across various settings, from residential properties to commercial establishments. To establish reliable connections between the different components in a CCTV setup, a variety of connectors are used. These connectors facilitate seamless data transmission, video feeds, and power supply, contributing to the overall effectiveness of the system. In this blog, we'll explore the most commonly used connectors in CCTV installations and their respective functionalities.
The BNC (Bayonet Neill-Concelman) connector is the workhorse of CCTV systems, extensively used to connect coaxial cables to cameras, monitors, and recording devices. Known for its secure and stable connection, the BNC connector is often used with RG-59 or RG-6 coaxial cables. It provides excellent video signal transmission, ensuring high-quality images and minimal signal loss.
The RCA (Radio Corporation of America) connector is a popular choice for audio and video connections in CCTV setups. Easily recognizable by its color-coded plugs (red for audio, white for audio, and yellow for video), the RCA connector is simple to use and widely available. It's an ideal option for connecting audio inputs/outputs and older analog cameras to DVRs.
In CCTV installations, cameras typically require a power supply to operate. Power jack connectors offer a standardized and straightforward approach to deliver power to the cameras. These connectors are commonly used with plug-and-play power adapters, streamlining the power distribution process.
For devices lacking dedicated connectors, terminal blocks come to the rescue. These connectors allow direct wire connections, making them ideal for powering cameras and other external devices in CCTV systems. They ensure a secure and reliable connection, minimizing the risk of accidental disconnections.

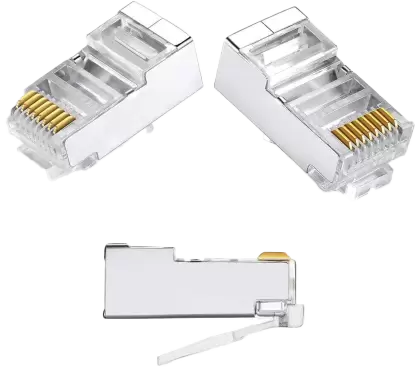

5 . Ethernet Connector (RJ-45)
With the rise of IP (Internet Protocol) cameras in modern CCTV installations, Ethernet connectors have become increasingly prevalent. RJ-45 connectors, in particular, are commonly used for network connectivity, enabling the seamless transmission of data and Power over Ethernet (PoE) functionality. This eliminates the need for separate power cables for IP cameras, simplifying installation and management.
6 . USB Connector
Some cameras and digital video recorders (DVRs) in CCTV systems come equipped with USB ports. These connectors serve various purposes, such as connecting external storage devices for data backup, configuring camera settings, and updating firmware.
High-Definition Multimedia Interface (HDMI) connectors are a must for HD CCTV systems. They enable the connection of monitors or displays that support high-definition video resolutions, ensuring crisp and clear video playback.
Although becoming less common in modern CCTV installations, VGA connectors are still found on older monitors or some DVRs. These analog video connectors are capable of transmitting video signals at lower resolutions.
Pan-Tilt-Zoom (PTZ) cameras and certain CCTV devices may use serial connectors (e.g., RS-485) for device control and configuration. These connectors facilitate bidirectional communication and are essential for operating PTZ functions remotely.
In large-scale CCTV installations or scenarios requiring long-distance transmission, fiber optic connectors shine. Their high-bandwidth capabilities and immunity to electromagnetic interference make them ideal for transmitting data and video over considerable distances.
Conclusion
Choosing the right connectors for your CCTV system is crucial for ensuring seamless data transmission, reliable power supply, and overall system performance. Understanding the functionalities of different connectors allows you to make informed decisions during the installation process. Always adhere to industry standards and manufacturer guidelines to optimize the efficiency and effectiveness of your CCTV system. Whether you're setting up a small home security system or a large commercial surveillance network, the appropriate connectors will play a vital role in achieving your security objectives.
